GATE-GE SERIES Engineering-mathematics
Surveying Measurements
3 previous year questions.
Volume: 3 Ques
Yield: Medium
High-Yield Trend
3
2025 Chapter Questions 3 MCQs
01
PYQ 2025
medium
engineering-mathematics ID: gate-ge-
For a given set of observations for distance measurements, the standard error was computed as . Assuming that the observations conform to normal error distribution theory, the probable error will be given by (rounded off to 2 decimal places).
02
PYQ 2025
medium
engineering-mathematics ID: gate-ge-
For a given set of observations for distance measurements, the standard error was computed as . Assuming that the observations conform to normal error distribution theory, the probable error will be given by (rounded off to 2 decimal places).
03
PYQ 2025
medium
engineering-mathematics ID: gate-ge-

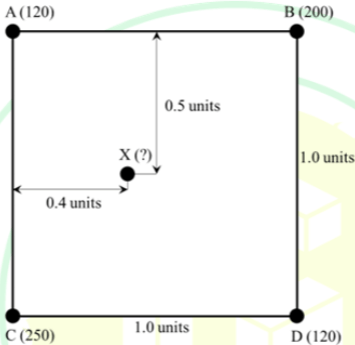

Consider the nodes of a square grid A, B, C and D (shown in figure below), where a certain parameter is measured. The distances between the points is also indicated in the same figure. For example, the value observed at point A is 120 and is indicated as A (120), and the distance between points A and B is 1.0 units. The value at point ‘X’ computed using bilinear interpolation, using the values at points A, B, C and D is _________
1
175
2
152
3
198
4
210
