Sketching And Composition Black And White

Choose the appropriate shadow pattern of this cube (below) at 3:00 p.m. in India.

What is the area of the base of the given figure(cuboid), where the distance between 2 dots is 1 unit?

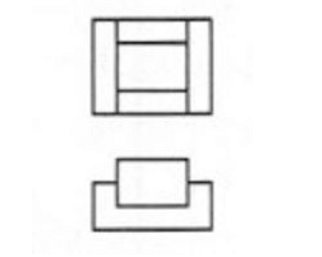

For the multi-view projection given below, select the correct corresponding isometric view in the row.

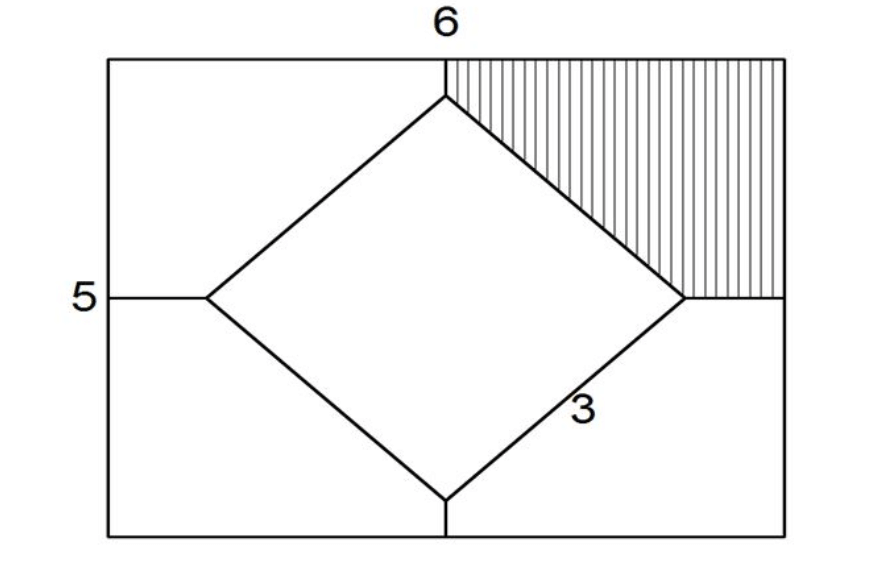

A square of 3 cm. side was cut from a rectangle of 6cm x 5cm as shown in the figure, what is the area of the shaded portion.

Vertical elements in building are

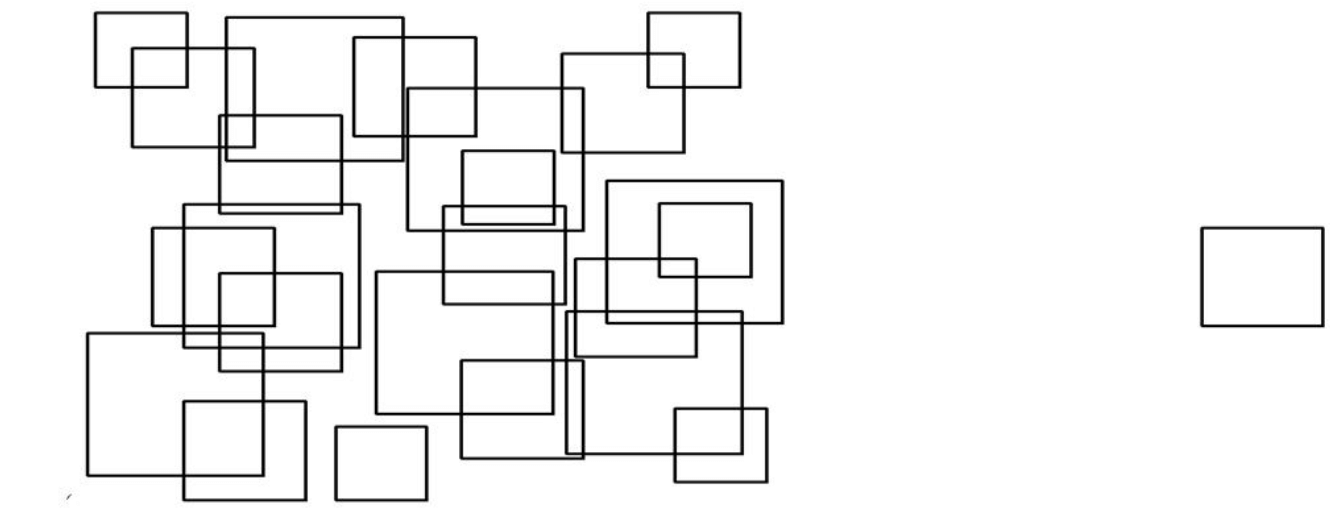

Shown on the left is a composition of squares of different sizes, how many time the square of the right is repeated in the composition.

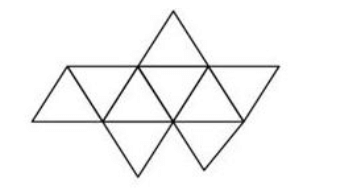

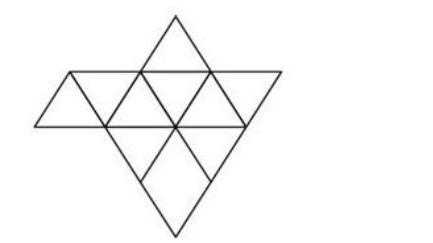

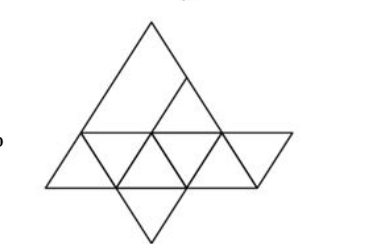

If the form shown below were to be unfolded what would it look like?

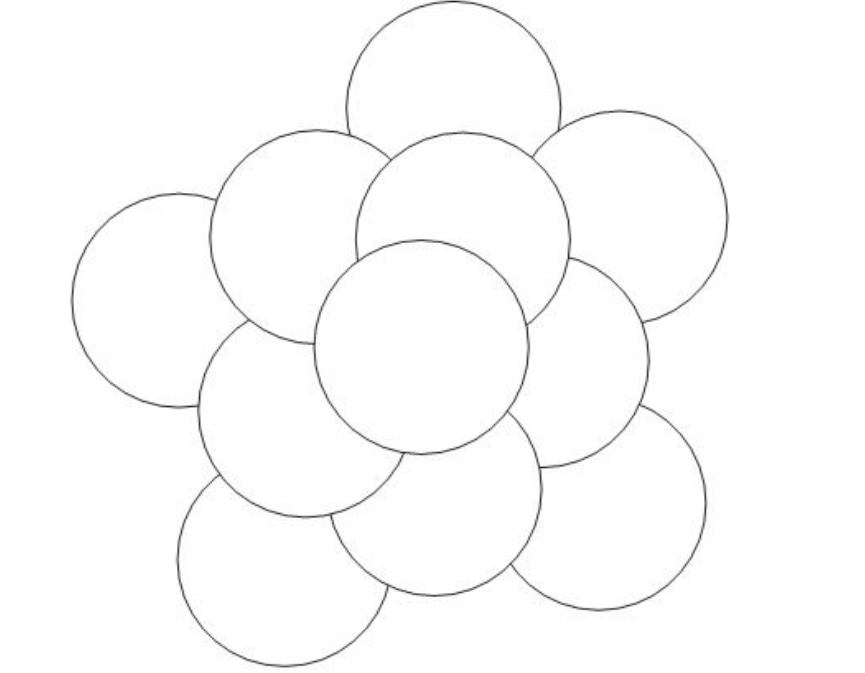

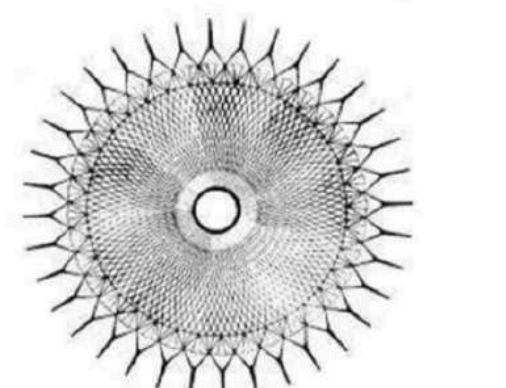

How many circles appears in the below picture?

What time of the day is represented by the location of the Sun on the diagram?

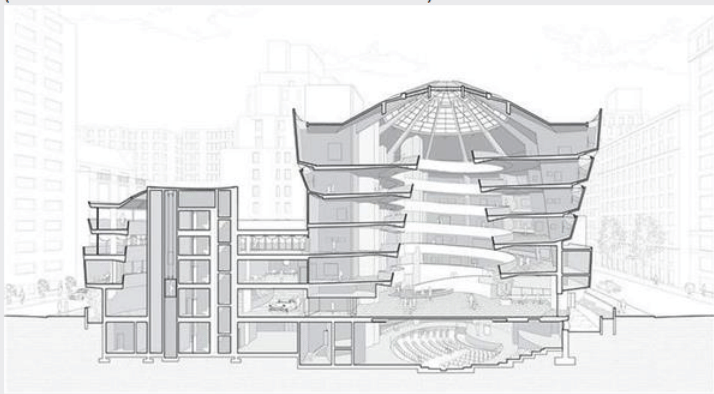

The given section is a building designed by American architect Frank Lloyd Wright. Choose four most appropriate architectural vocabularies associated with the building.
(Marks will be awarded if all answers are correct)

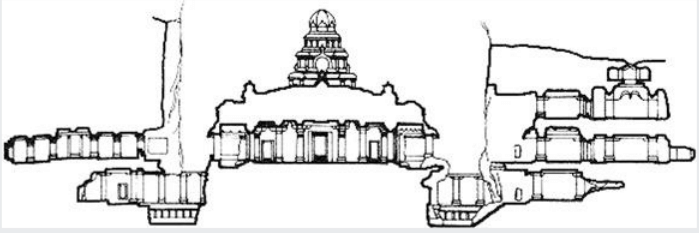

The following sketch is the section of the Kailashanathan temple in Ellora. From the given Section identify four most important elements that define the temple.(Marks will be awarded if all answers are correct)

Choose the two most important visual principles in the given 2-dimensional black and white composition.

Choose the two most important visual principles in the given 2- dimensional black and white composition.

The given picture shows Natasha's souvenir collection from her various travels around the world. Carefully observe the souvenirs and answer the two questions below. The image will appear for 30 seconds.

Which of the following drawings is a four point perspective ?

Choose from the options below, the composition that best relates to the given composition.

Choose the two most important visual principles in the given 2- dimensional black and white composition.

Carefully observe the given work desk. The image will disappear for 30 seconds and cannot be viewed again. Two questions will be asked based on the image.

How many horses do you see in the picture ?

ABCDE is a regular pentagon. O is a point inside the pentagon such that AOB is an equilateral triangle. What is ∠OEA ?

Find the area of the blue shaded portion for the given figure below.

In the given figure, ABCD is a cyclic quadrilateral such that ∠ADB = 50° and ∠DCA = 70°, then find the measure of ∠DAB.

In the given figure if the area of the blue shaded right angled triangle is 1cm². Then find the area of the square ABCD.

Perimeter of a Triangle with integer sides is equal to 15. How many such triangles are possible ?

A chord AB of length 20cm is at a distance of 4cm from the center O of a circle. Find the radius of the circle.

Find the ratio of areas between Blue shaded portion and the red shaded portion, if the given shapes are 2 regular hexagons. (Blue Area: Red Area= ?)

Find the area of the composite shape in the given figure.

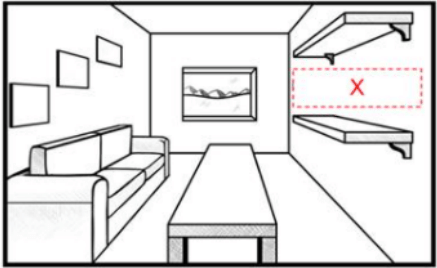

For the given one point perspective of the living room, identify which display rack will be replaced in the place of (X).

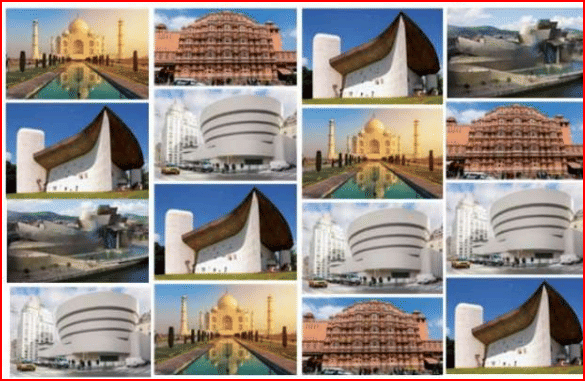

Locate the odd image and identify the segment in which located; for example A/1, E/5, and so on

The given painting belongs to De Stijl, meaning 'The Style', a modern art movement developed in the Netherlands in the early twentieth century, the art movement influenced modern architecture as well. Choose the correct interior image that belongs to the particular style - De Stijl

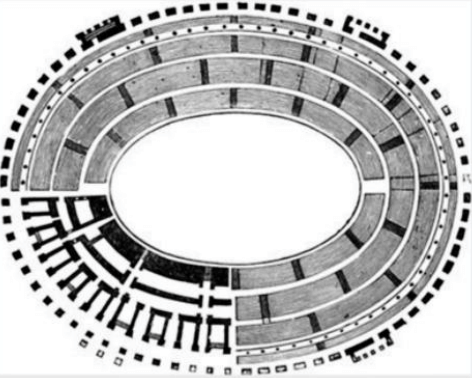

Identify the given plan of a classical building, a building which was erected for the purposes of mass scale entertainment.

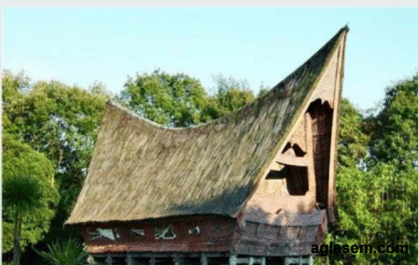

The image of the vernacular dwelling given below displays an architecture that is responsive to tropical climate and context. In which tropical country can this type of dwelling be found ?

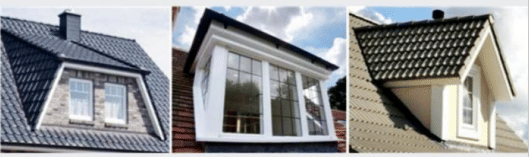

The set of images given below indicate a functional and structural element that protrudes from the plane of a sloping roof surface.
What is the correct terminology for this element ?

To which cultural aesthetic and landscape do the elements such as Tea house, dry landscape garden, 'Treasure tower' pagoda, 'Drum' bridge, trees, water and rocks attributed ?

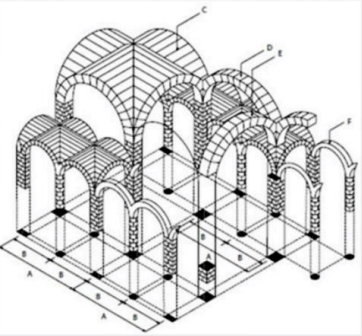

Identify the kind of roofing system used in the structure below.

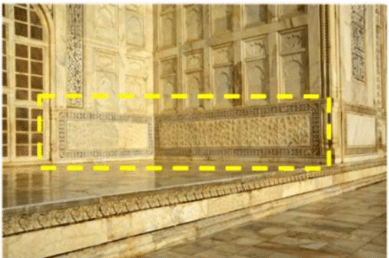

The highlighted area in the image of the Taj Mahal below is given a decorative treatment, different from that for the upper part of the wall. What is the architectural terminology for the same ?

Choose any four most appropriate principles/attributes of design which can be commonly observed in the given image.

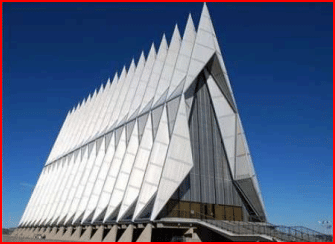

The given image is that of the Cadet Chapel, Colorado, USA. Identify any four most appropriate principles which can be observed in the given photograph.

Choose any four most appropriate principles which can be observed in the given photograph.
