COMEDK-UGET SERIES

Physics

Logic Gates

3 previous year questions.

Volume: 3 Ques

Yield: Medium

High-Yield Trend

1

2023

1

2022

1

2021

Chapter Questions
3 MCQs

01

PYQ 2021

medium

physics ID: comedk-u

Find the logic gate, when both the inputs are high the output is low and vice-versa.

1

AND

2

OR

3

NAND

4

NOR

02

PYQ 2022

medium

physics ID: comedk-u

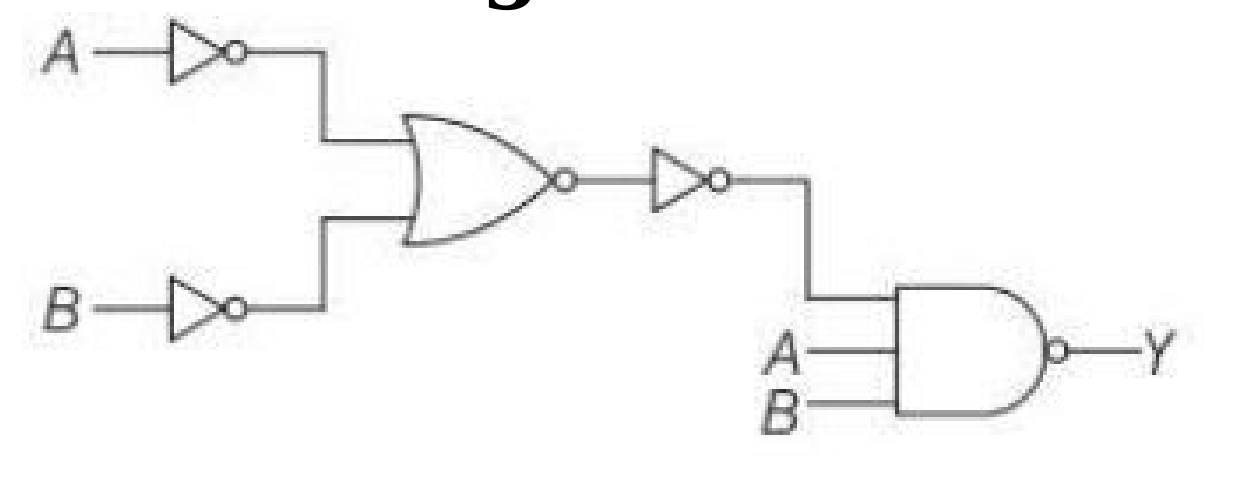

Which of the following gate gives the similar output as the output of the circuit diagram shown in the figure?

1

AND gate

2

OR gate

3

NOR gate

4

NAND gate

03

PYQ 2023

medium

physics ID: comedk-u

Which logic gate is represented by the following combination of logic gates?

1

OR

2

NAND

3

AND

4

NOR

Official Solution

Correct Option: (2)

To determine which logic gate is represented by the given combination of logic gates, let's analyze the operation of a NAND gate: The NAND gate is a combination of an AND gate followed by a NOT gate. Its output is true (1) unless both inputs are true (1). In terms of a truth table: Input A Input B AND Output NAND Output 0001010110011110 The truth table demonstrates that the NAND gate produces an output of false (0) only when both inputs are true (1), characteristic of its operation. This confirms the given logic gate is the NAND gate.
