Logic Gates
2 previous year questions.
Volume: 2 Ques
Yield: Medium
High-Yield Trend
2
2025 Chapter Questions 2 MCQs
01
PYQ 2025
medium
physics ID: gate-ph-

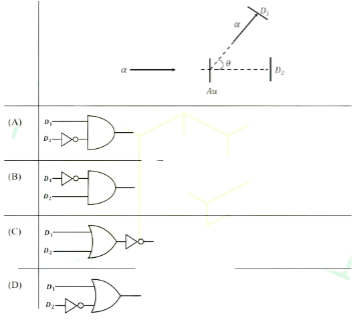

An particle is scattered from an Au target at rest as shown in the figure. and are the detectors to detect the scattered particle at an angle and along the beam direction, respectively, as shown. The signals from and are converted to logic signals and fed to logic gates. When a particle is detected, the signal is 1 and is 0 otherwise. Which one of the following circuits detects the particle scattered at the angle only?
1
Logic gates with and in AND configuration.
2
Logic gates with and in OR configuration.
3
Logic gates with in AND and in NOT configuration.
4
Logic gates with in OR and in NOT configuration.
02
PYQ 2025
medium
physics ID: gate-ph-
A logic gate circuit is shown in the figure below. The correct combination for the input for which the output is:
1
2
3
4
