GATE-PH SERIES
Physics

Magnetic Effects Of Current And Magnetism

6 previous year questions.

Volume: 6 Ques
Yield: Medium

High-Yield Trend

6
2025

Chapter Questions
6 MCQs

01
PYQ 2025
medium
physics ID: gate-ph-
The effective magnetic moment (in units of Bohr magneton) for the ground state of an isolated 4𝑓 ion with 6 unpaired electrons in the 4𝑓 shell according to Hund’s rules is (in integer) _____
02
PYQ 2025
medium
physics ID: gate-ph-
Cyclotrons are used to accelerate ions like deuterons ( ) and particles. Keeping the magnetic field the same for both, and are extracted with energies 10 MeV and 20 MeV with extraction radii and , respectively. Taking the masses and , the value of (in integer) is:
03
PYQ 2025
medium
physics ID: gate-ph-
Cyclotrons are used to accelerate ions like deuterons ( ) and particles. Keeping the magnetic field the same for both, and are extracted with energies 10 MeV and 20 MeV with extraction radii and , respectively. Taking the masses and , the value of (in integer) is:
04
PYQ 2025
medium
physics ID: gate-ph-
A linear magnetic material in the form of a cylinder of radius and length is placed with its axis parallel to the -axis. The cylinder has uniform magnetization . Which of the following option(s) is/are correct?
1
The magnetic field at any point outside the cylinder can be expressed as the gradient of a scalar function
2
The bound volume current density is zero
3
The surface current density on the curved surface is non-zero
4
The surface current densities on the flat surfaces (top and bottom) are non-zero
05
PYQ 2025
medium
physics ID: gate-ph-

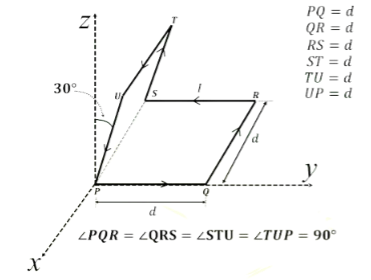

The wire loop shown in the figure carries a steady current . Each straight section of the loop has length . A part of the loop lies in the -plane and the other part is tilted at with respect to the -plane. The magnitude of the magnetic dipole moment of the loop (in appropriate units) is:


Β

1

2

3

4
06
PYQ 2025
medium
physics ID: gate-ph-

The effective magnetic moment (in units of Bohr magneton) for the ground state of an isolated 4𝑓 ion with 6 unpaired electrons in the 4𝑓 shell according to Hund’s rules is (in integer) _____

About Magnetic Effects Of Current And Magnetism - GATE-PH

Magnetic Effects Of Current And Magnetism is a vital chapter for GATE-PH aspirants. Mastering the concepts covered in this chapter is essential for securing a top rank.

By rigorously practicing the previous year questions associated with this chapter, you can identify high-yield topics, understand the examiner's perspective, and boost your confidence during the actual exam.

Frequently Asked Questions

Why focus on Magnetic Effects Of Current And Magnetism PYQs?

Analyzing PYQs for this specific chapter reveals the most frequently tested concepts and the typical complexity of questions, allowing you to tailor your study plan efficiently.

How to best use this analysis?

Review the topic breakdown to see which sub-topics within Magnetic Effects Of Current And Magnetism carry the most weight. Then, tackle the questions iteratively to solidify your understanding.
