CUET-UG SERIES Engineering-graphics
Isometric Projection
12 previous year questions.
Volume: 12 Ques
Yield: Medium
High-Yield Trend
12
2023 Chapter Questions 12 MCQs
01
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
Identify the correct statements regarding Isometric Scale.
A) True scale is marked on horizontal base line.
B) Isometric scale is marked on a line inclined at 45° with horizontal base line
C) Isometric scale is used to draw isometric view.
D) Isometric scale can measure the length of isometric lines
E) Isometric scale cannot measure the length of non-isometric lines.
Choose the correct answer from the options given below:
A) True scale is marked on horizontal base line.
B) Isometric scale is marked on a line inclined at 45° with horizontal base line
C) Isometric scale is used to draw isometric view.
D) Isometric scale can measure the length of isometric lines
E) Isometric scale cannot measure the length of non-isometric lines.
Choose the correct answer from the options given below:
1
D and E only
2
A and B only
3
B and D only
4
A and E only
02
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
Match List - I with List- II.
Choose the correct answer from the options given below:
| List - I (Dimension in Isometric Projection) | List - II (Isometric length)(Approx) |
|---|---|
| (A) Long edge of the prism | (I) 16 mm |
| (B) Short edge of the prism | (II) 32 mm |
| (C) Radius of Cylinder | (III) 64 mm |
| (D) Diameter of Cylinder | (IV) 20 mm |
Choose the correct answer from the options given below:
1
A-IV, B-I, C-II, D-III
2
А-III, В-I, C-II, D-IV
3
А-II, В-I, C-IV, D-III
4
A-IV, B-III, C-II, D-I
03
PYQ 2023
medium
engineering-graphics ID: cuet-ug-

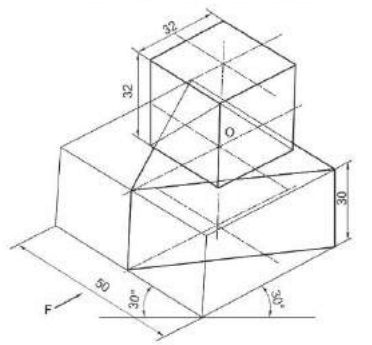

Choose the correct statement for the given figure:
1
One of the base edges of the triangular prism is perpendicular to V.P.
2
All edges of cube are perpendicular to V.P.
3
One rectangular face of tringular prism is parellel to V.P. and near to it.
4
All faces of cube in its isometric projection will appear as square.
04
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
The isometric projection of different solids is drawn by keeping the three principle axes at ____________ to each other.
1
60
2
30
3
90
4
120
05
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
The isometric scale is used for measurement of _______
1
Isometric length
2
True length
3
Spherical Dimensions
4
Enlarged length
06
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
The isometric scale is used to obtain the ____ of the edges of any object to draw its isometric projection.
1
foreshortened length
2
enlarged length
3
true length
4
double length
07
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
Identify the correct statement for Isometric Projection of a sphere
A. Its diameter is foreshortened.
B. Its isometric projection appears as circle.
C. Its isometric projection is drawn by taking an angle of 60 with the horizontal reference line.
D. Its diameter is drawn using true scale.
E. Its isometric projection appears as hemisphere.
Choose the correct answer from the options given below:
A. Its diameter is foreshortened.
B. Its isometric projection appears as circle.
C. Its isometric projection is drawn by taking an angle of 60 with the horizontal reference line.
D. Its diameter is drawn using true scale.
E. Its isometric projection appears as hemisphere.
Choose the correct answer from the options given below:
1
B and D only
2
B and C only
3
A and D only
4
A and E only
08
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
Match the List I with List II
Choose the correct answer from the options given below:
LIST I | LIST II | ||
|---|---|---|---|
| A | Isometric projection | I | Angle between two principal planers is 900 |
| B | Dimetric projection | II | All the angles between principal axes are unequal and not less than 900 |
| C | Trimetric projection | III | All the angles between principal axes are equal. |
| D | Orthographic projection | IV | Only two angles between three principle axes are equal |
Choose the correct answer from the options given below:
1
A-III, B-IV, C-II, D-I
2
A-I, B-II, C-III, D-IV
3
A-II, B-III, C-IV, D-I
4
A-IV, B-II, C-III, D-I
09
PYQ 2023
medium
engineering-graphics ID: cuet-ug-

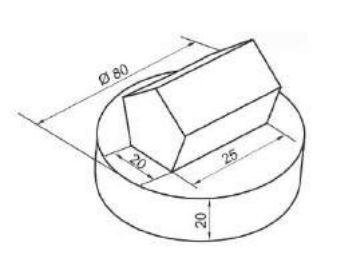

Match the List I with List II on the basis of the given figure.
LIST I | LIST II | ||
|---|---|---|---|
| A | Bottom solid | I | Vertical |
| B | Top solid | II | Horizontal |
| C | Axis of top solid | III | Equilateral Triangular Prism |
| D | Axis of bottom solid | IV | Circular salab |
1
A-III, B-II, C-I, D-IV
2
A-III, B-II, C-IV, D-I
3
A-I, B-II, C-I, D-IV
4
A-IV, B-III, C-II, D-I
10
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
Identify the correct statement for the given figure
A. Axes of both solids are perpendicular to H.P.
B. Axis of cylinder is perpendicular to V.P. and axis of hemisphere is perpendicular to H.P
C. A hemisphere is resting on the circular face of a hemisphere.
D. A hemisphere is resting on a cylinder.
E. A horizontal cylinder is resting on a hemisphere.
Choose the correct answer from the options given below:
A. Axes of both solids are perpendicular to H.P.
B. Axis of cylinder is perpendicular to V.P. and axis of hemisphere is perpendicular to H.P
C. A hemisphere is resting on the circular face of a hemisphere.
D. A hemisphere is resting on a cylinder.
E. A horizontal cylinder is resting on a hemisphere.
Choose the correct answer from the options given below:
1
B and E only
2
A and D only
3
D and E only
4
A and C only
11
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
Identify the correct statement for the given figure
A. A pentagonal prism is resting on H.P. on its base.
B. Axis of pyramid is perpendicular to V.P
C. Axis of pyramid is perpendicular to H.P.
D. A pentagonal pyramid is resting on H.P. on its apex.
E. Length of its axis is 35 mm.
Choose the correct answer from the options given below:
A. A pentagonal prism is resting on H.P. on its base.
B. Axis of pyramid is perpendicular to V.P
C. Axis of pyramid is perpendicular to H.P.
D. A pentagonal pyramid is resting on H.P. on its apex.
E. Length of its axis is 35 mm.
Choose the correct answer from the options given below:
1
A and B only
2
C and D only
3
B and E only
4
A and C only
12
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
Match List - I with List - II.
Choose the correct answer from the options given below:
| List - I | List -II |
| (Solids) | (Their Features) |
| (A)Angle of Line indicating Isometric lengths with base line | (I) |
| (B) Angle of line showing true lengths with base line. | (II) |
| (C) Angle between lines showing isometric lengths and true lengths. | (III) |
| (D) Angle of projectors with base line. | (IV) |
1
(A)-(II), (B)-(I), (C)-(IV), (D)-(III)
2
(A)-(II), (B)-(III), (C)-(I), (D)-(IV)
3
(A)-(I), (B)-(II), (C)-(III), (D)-(IV)
4
(A)-(IV), (B)-(III), (C)-(I), (D)-(I)
