Projections Of Solids
5 previous year questions.
Volume: 5 Ques
Yield: Medium
High-Yield Trend
5
2023 Chapter Questions 5 MCQs
01
PYQ 2023
medium
engineering-graphics ID: cuet-ug-

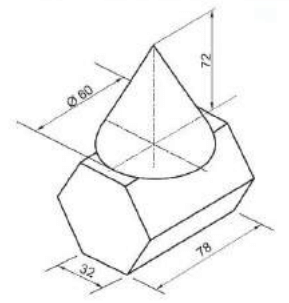

Identify the correct statements for given figure:
A) A cone is resting on H.P. on its apex.
B) A hexagonal prism is resting on H.P.
C) Common axis is perpendicular to H.P.
D) Prism has six rectangular faces.
E) A cone is resting on hexagonal pyramid.
Choose the correct answer from the options given below:
A) A cone is resting on H.P. on its apex.
B) A hexagonal prism is resting on H.P.
C) Common axis is perpendicular to H.P.
D) Prism has six rectangular faces.
E) A cone is resting on hexagonal pyramid.
Choose the correct answer from the options given below:
1
C and E only
2
B and D only
3
A and D only
4
D and E only
02
PYQ 2023
medium
engineering-graphics ID: cuet-ug-

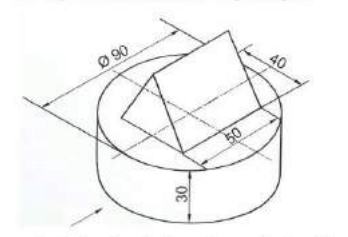

Identify the correct statements for given figure:
A) A triangular prism is resting on a circular slab.
B) Axis of triangular prism is perpendicular to V.P.
C) Axis of circular slab is parallel to H.P.
D) Axis of triangular prism is perpendicular to H.P.
E) Axis of circular slab is perpendicular to V.P.
Choose the correct answer from the options given below:
A) A triangular prism is resting on a circular slab.
B) Axis of triangular prism is perpendicular to V.P.
C) Axis of circular slab is parallel to H.P.
D) Axis of triangular prism is perpendicular to H.P.
E) Axis of circular slab is perpendicular to V.P.
Choose the correct answer from the options given below:
1
C and D only
2
D and E only
3
A and E only
4
A and B only
03
PYQ 2023
medium
engineering-graphics ID: cuet-ug-

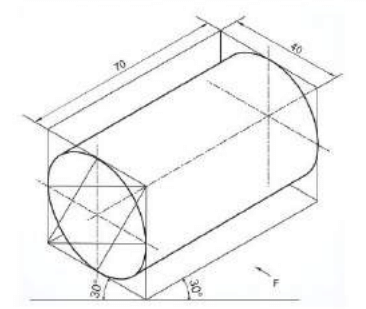

Choose the correct statement, according to the given figure:
1
Circular faces of cylinder are parallel to V.P.
2
Number of circular faces in a cylinder are three.
3
Circular faces of cylinder are perpendicular to V.P.
4
Circular faces of cylinder are parallel to H.P.
04
PYQ 2023
medium
engineering-graphics ID: cuet-ug-

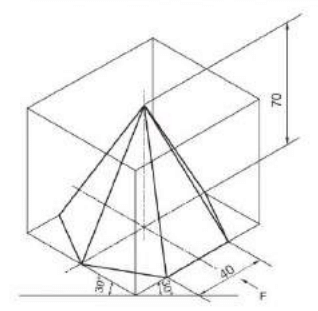

Choose the incorrect statement for the given figure:
1
Axis of pyramid is perpendicular to H.P.
2
Two of its base edges are parallel to V.P.
3
A pentagonal pyramid is resting on H.P. on its base
4
A hexagonal pyramid is resting on H.P. on its base.
05
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
A solid having two bases and rectangular faces is_____.
1
Pyramid
2
Sphere
3
Prism
4
Cylinder
