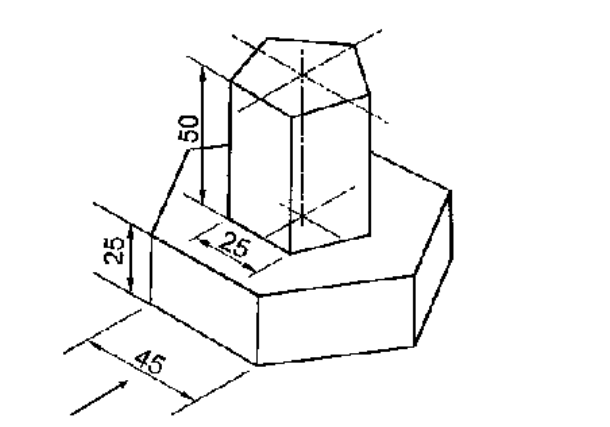

Identify the correct statements for the given figure :
(A) A hexagonal prism is resting on a pentagonal prism.
(B) A pentagonal pyramid is resting on a hexagonal prism.
(C) Common Axis is perpendicular to H.P.
(D) Common Axis is Parallel to H.P.
(E) A Pentagonal prism is resting on a hexagonal prism.
Choose the correct answer from the options given below:
(A) A hexagonal prism is resting on a pentagonal prism.
(B) A pentagonal pyramid is resting on a hexagonal prism.
(C) Common Axis is perpendicular to H.P.
(D) Common Axis is Parallel to H.P.
(E) A Pentagonal prism is resting on a hexagonal prism.
Choose the correct answer from the options given below:
1
(A) and (D) Only
2
(C) and (E) Only
3
(B) and (D) Only
4
(A) and (E) Only
