CUET-UG SERIES Engineering-graphics
Orthographic Projection
4 previous year questions.
Volume: 4 Ques
Yield: Medium
High-Yield Trend
4
2023 Chapter Questions 4 MCQs
01
PYQ 2023
medium
engineering-graphics ID: cuet-ug-

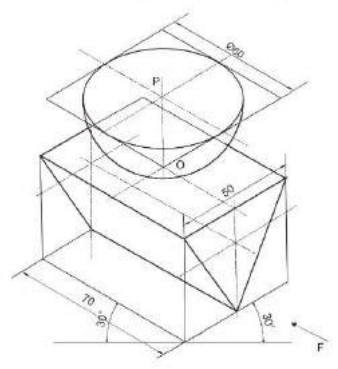

Choose the correct statement for the given figure:
1
A triangular prism is resting on a hemisphere.
2
A triangular Prism is resting on one of its Long edges.
3
A hemisphere is resting on H.P. on its circular face.
4
A hemisphere is resting on triangular face of the Prism.
02
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
Choose the correct statement for the given figure:
1
One of the base edges of triangular slab is parallel to V.P. and near to it.
2
Two of the base edges of hexagonal pyramid is perpendicular to V.P.
3
One rectangular face of triangular slab is parallel to V.P. and near the observer
4
Hexagonal pyramid has six rectangular faces.
03
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
Projectors are parallel to each other and also perpendicular to the plane of projection, such projections are called _________
1
Orthographic projection
2
Perspective projection
3
Isometric projection
4
Oblique projection
04
PYQ 2023
medium
engineering-graphics ID: cuet-ug-
A solid having all edges of equal in length:
1
Regular Pentagonal Prism
2
Cuboid
3
Cube
4
Equilateral Triangular Prism
