IIT-JAM-GG SERIES
Geology

Stratigraphy

41 previous year questions.

Volume: 41 Ques
Yield: High

High-Yield Trend

5
2025
4
2024
5
2023
8
2022
1
2021
7
2020
1
2018
10
2017

Chapter Questions
41 MCQs

01
PYQ 2017
medium
geology ID: iit-jam-
Which of the following stratigraphic unit(s) is/are coal/lignite bearing?
1
Barakar Formation
2
Barail Group
3
Cuddalore Formation
4
Ariyalur Formation
02
PYQ 2017
medium
geology ID: iit-jam-
Which one of the following lithostratigraphic units is of Phanerozoic Eon?
1
Sargur Group
2
Semri Group
3
Uttatur Group
4
Papaghni Group
03
PYQ 2017
medium
geology ID: iit-jam-
The age of the Patcham Formation is
1
Permian
2
Triassic
3
Jurassic
4
Cretaceous
04
PYQ 2017
medium
geology ID: iit-jam-
Match the geological processes (Group I) with their examples in Indian stratigraphy (Group II).
1
P-3 Q-4 R-1 S-2
2
P-2 Q-3 R-4 S-1
3
P-3 Q-2 R-1 S-4
4
P-4 Q-1 R-2 S-3
05
PYQ 2017
medium
geology ID: iit-jam-

Match the geological processes (Group I) with their examples in Indian stratigraphy (Group II).
Group I Group II
P. Permo-Carboniferous glaciation 1. Ariyalur Group
Q. Cretaceous marine transgression 2. Siwalik Group
R. Neogene fluvial sedimentation 3. Talchir Formation
S. Cretaceous inter-trappean sedimentation 4. Lameta Formation

1
P-3 Q-4 R-1 S-2
2
P-2 Q-3 R-4 S-1
3
P-3 Q-2 R-1 S-4
4
P-4 Q-1 R-2 S-3
06
PYQ 2017
medium
geology ID: iit-jam-

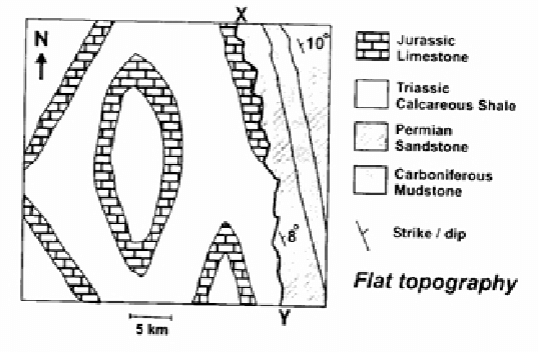

In the given map, the X-Y surface has the same orientation as in the Palaeozoic sequence. X-Y represents

1
angular unconformity
2
non-conformity
3
normal fault
4
thrust
07
PYQ 2017
medium
geology ID: iit-jam-

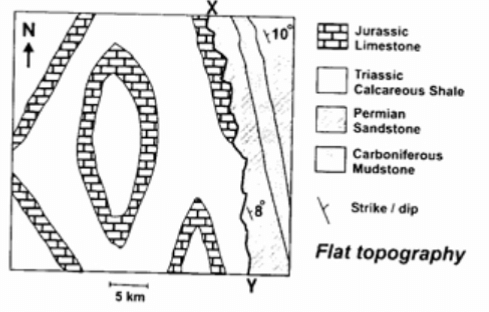

In the given map, the X-Y surface has the same orientation as in the Palaeozoic sequence. X-Y represents

1
angular unconformity
2
non-conformity
3
normal fault
4
thrust
08
PYQ 2017
medium
geology ID: iit-jam-
Which of the following stratigraphic unit(s) is/are coal/lignite bearing?
1
Barakar Formation
2
Barail Group
3
Cuddalore Formation
4
Ariyalur Formation
09
PYQ 2017
medium
geology ID: iit-jam-
Which one of the following lithostratigraphic units is of Phanerozoic Eon?
1
Sargur Group
2
Semri Group
3
Uttatur Group
4
Papaghni Group
10
PYQ 2017
medium
geology ID: iit-jam-
The age of the Patcham Formation is
1
Permian
2
Triassic
3
Jurassic
4
Cretaceous
11
PYQ 2018
medium
geology ID: iit-jam-
The correct combination(s) of ranks and corresponding categories of stratigraphic units is/are
1
Formation – Lithostratigraphy
2
System – Chronostratigraphy
3
Period – Chronostratigraphy
4
Group – Biostratigraphy
12
PYQ 2020
medium
geology ID: iit-jam-

A coal seam occurs in a stratigraphic sequence as shown in the figure. If a vertical borehole is drilled at location B, the coal seam will be intersected at a depth (in m) of ........

13
PYQ 2020
medium
geology ID: iit-jam-

In the given profile section, P, Q, R, S, and T are sedimentary rocks. Identify the type of unconformity in the sedimentary sequence.

1
Angular unconformity
2
Disconformity
3
Nonconformity
4
Paraconformity
14
PYQ 2020
medium
geology ID: iit-jam-
Evidence of Late Paleozoic glaciation is recorded in
1
Panchet Formation
2
Talchir Formation
3
Motur Formation
4
Barakar Formation
15
PYQ 2020
medium
geology ID: iit-jam-

Match the name of granitoid in Group I with the corresponding Craton in Group II.

1
P-4, Q-2, R-1, S-3
2
P-3, Q-4, R-2, S-1
3
P-3, Q-4, R-1, S-2
4
P-4, Q-3, R-2, S-1
16
PYQ 2020
medium
geology ID: iit-jam-
Choose the correct pair(s):
1
Proterozoic → Origin of flowering plants
2
Paleozoic → Origin of amphibians
3
Mesozoic → Acme of trilobites
4
Cenozoic → Dominance of mammals
17
PYQ 2020
medium
geology ID: iit-jam-

In an undeformed and normal stratigraphic succession, a dolerite dyke was emplaced before deposition of sandstone B. The difference between the maximum ages (in Myr) of deposition of sandstone A and sandstone B is ...............

18
PYQ 2020
medium
geology ID: iit-jam-
The Mesozoic Era approximately ranges from
1
1000-540 Ma
2
250-65 Ma
3
540-250 Ma
4
65 Ma-Present
19
PYQ 2021
medium
geology ID: iit-jam-

Choose the CORRECT match between items in Group I with the items in Group II.
Group I Group II
P. Polarity zone 1. Biostratigraphy
Q. Formation 2. Chronostratigraphy
R. Biozone 3. Magnetostratigraphy
S. Epoch 4. Lithostratigraphy

1
P–1; Q–2; R–3; S–4
2
P–2; Q–3; R–1; S–4
3
P–3; Q–4; R–1; S–2
4
P–3; Q–4; R–2; S–1
20
PYQ 2022
medium
geology ID: iit-jam-
Which one of the following is a geochronologic unit?
1
System
2
Period
3
Member
4
Formation
21
PYQ 2022
easy
geology ID: iit-jam-
Which one of the following must have thickness less than 1 cm?
1
Lamina
2
Bed
3
Straum
4
Layer
22
PYQ 2022
medium
geology ID: iit-jam-
The Triassic-Jurassic boundary lies Within which one of the following stratigraphic units?
1
Panchet Formation
2
Dharmaram Fomation
3
Pachmarhi Formation
4
Denva Formation
23
PYQ 2022
medium
geology ID: iit-jam-
The contact between the Talchir Formation and the underlying Precambrian basement is
1
an angular unconformity
2
a disconformity
3
a paraconformity
4
an unconformity
24
PYQ 2022
medium
geology ID: iit-jam-
Match the formations in Group I with corresponding stratigraphic periods in Group II.
Group IGroup II
PSyringothyris Limestone1Permian
QKarai Shale2Jurassic
RChari3Carboniferous
SBarren Measures4Cretaceous
1
P-1, Q-2, R-3, S-4
2
P-2, Q-4, R-1, S-3
3
P-3, Q-4, R-2, S-1
4
P-4, Q-1, R-2, S-3
25
PYQ 2022
medium
geology ID: iit-jam-
Which of the following structures form in marine environment?
1
Lateral accretionary surfaces
2
Hummocky cross stratification
3
Herringbone cross stratification
4
Barchanoids
26
PYQ 2022
medium
geology ID: iit-jam-
Identify the correct stratigraphic successions ordered from oldest to youngest.
1
Papaghni Group - Kurnool Group - Nallamalai Group - Chitravati Group
2
Semri Group - Kaimur Group - Rewa Group - Bhander Group
3
Papaghni Group - Chitravati Group - Nallamalai Group - Kurnool Group
4
Semri Group - Rewa Group - Bhander Group - Kaimur Group
27
PYQ 2022
medium
geology ID: iit-jam-
Which of the following stratigraphic units contain coal seams?
1
Barakar Formation
2
Lakadong Formation
3
Pachmarhi Formation
4
Panchet Formation
28
PYQ 2023
medium
geology ID: iit-jam-
Which of the following combinations of Basin and Formation is/are CORRECT?
1
Cauvery Basin – Niniyur Formation
2
Assam Basin – Tipam Formation
3
Bengal Basin – Jalangi Formation
4
Kutch Basin – Dhok Pathan Formation
29
PYQ 2023
medium
geology ID: iit-jam-
Which of the following sedimentary structures is/are tool marks?
1
Bounce marks
2
Wrinkle marks
3
Prod marks
4
Skip marks
30
PYQ 2023
medium
geology ID: iit-jam-
Match the lithostratigraphic groups in Column I with their corresponding formations in Column II.
Column IColumn II
P.Papaghni Group1.Kajrahat Formation
Q.Uttatur Group2.Nagri Formation
R.Siwalik Group3.Vempalle Formation
S.Semri Group4.Karai Formation
1
P – 4, Q – 3, R – 1, S – 2
2
P – 3, Q – 4, R – 2, S – 1
3
P – 3, Q – 1, R – 2, S – 4
4
P – 2, Q – 4, R – 3, S – 1
31
PYQ 2023
medium
geology ID: iit-jam-
Spiti Shale was deposited during the _____ time.
1
Palaeozoic
2
Mesozoic
3
Cenozoic
4
Proterozoic
32
PYQ 2023
easy
geology ID: iit-jam-
On the magnetic polarity time scale, the present-day epoch/chron is called _______.
1
Matuyama
2
Gilbert
3
Gauss
4
Bruhnes
33
PYQ 2024
medium
geology ID: iit-jam-
Which of the following combinations are correctly matched?
1
Photic zone – biogenic carbonate rocks
2
Delta – progradational coarsening-up succession
3
Sabkha – shelf storm deposit
4
Shelf break – submarine fans
34
PYQ 2024
medium
geology ID: iit-jam-
The correct stratigraphic successions arranged from the oldest to the youngest are
1
Uttatur → Trichinopoly → Ariyalur → Niniyur
2
Chari → Patcham → Umia → Katrol
3
Chinji → Nagri → Dhok Pathan → Tatrot
4
Semri → Rewa → Kaimur → Bhander
35
PYQ 2024
medium
geology ID: iit-jam-
The correct hierarchy of the given stratigraphic units is
1
Group > Member > Formation > Bed
2
Eon > Era > Epoch > Period
3
Group > Formation > Member > Bed
4
Eon > Era > Series > Systems
36
PYQ 2024
medium
geology ID: iit-jam-
In a sequence of undeformed sedimentary rocks, younger rocks overlie older rocks. This conforms to the principle of
1
superposition
2
uniformitarianism
3
faunal succession
4
original horizontality
37
PYQ 2025
medium
geology ID: iit-jam-

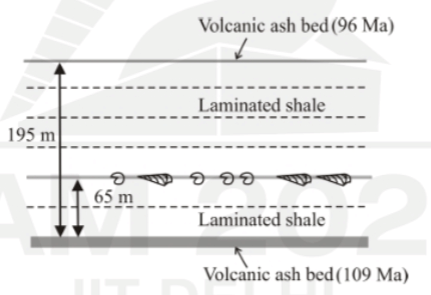

A well-developed succession of laminated shale is bound by two volcanic ash beds that were precisely dated as shown in the schematic diagram given below. Assuming a constant sedimentation rate, the age of the fossiliferous limestone bed 65 m above the basal volcanic ash bed is ............ Ma. (Round off to nearest integer)

38
PYQ 2025
medium
geology ID: iit-jam-

Match the stratigraphic units in Group I with their corresponding basins in Group II.

Group IGroup II
P. Kajrahat Limestone1. Cuddapah
Q. Shahabad Limestone2. Pranhita-Godavari
R. Chanda Limestone3. Vindhyan
S. Narji Limestone4. Bhima
1
P-3, Q-2, R-1, S-4
2
P-3, Q-4, R-1, S-2
3
P-2, Q-4, R-3, S-1
4
P-1, Q-3, R-4, S-2
39
PYQ 2025
medium
geology ID: iit-jam-
Which of the following characteristics of fossils is/are necessary for biostratigraphic applications?
1
Wide geographic distribution
2
Long vertical range
3
Good preservation of hard shells
4
Facies dependence
40
PYQ 2025
medium
geology ID: iit-jam-
Which of the following statements related to stratigraphy is/are CORRECT?
1
Grain-size of sediments progressively coarsens upward in a deltaic succession
2
Paraconformity shows a distinct erosional surface
3
Paleogene Period includes Paleocene, Eocene and Oligocene Epochs
4
Sea-level fall causes shifting of river mouth towards deep ocean
41
PYQ 2025
medium
geology ID: iit-jam-
Which one of the following represents the CORRECT combination of stratigraphic unit with its corresponding age?
1
Barail Formation – Miocene
2
Mahadek Formation – Oligocene
3
Naredi Formation – Eocene
4
Dalmia Puram Formation – Paleocene
