BITSAT SERIES
Physics

Electrostatic Potential

10 previous year questions.

Volume: 10 Ques
Yield: Medium

High-Yield Trend

1
2021
1
2019
1
2018
1
2017
1
2015
1
2014
1
2011
1
2010
1
2009
1
2005

Chapter Questions
10 MCQs

01
PYQ 2005
medium
physics ID: bitsat-2
The work done in carrying a charge once round a circle of radius with a charge at the centre is :
1
2
3
4
none of the above
02
PYQ 2009
hard
physics ID: bitsat-2

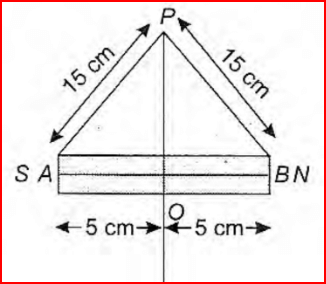

A bar magnet is long is kept with its north ( )-pole pointing north. A neutral point is formed at a distance of from each pole: Given the horizontal component of earth's field is Gauss, the pole strength of the magnet is
1
9 A-m
2
6.75 A-m
3
27 A-m
4
1.35 A-m
03
PYQ 2010
medium
physics ID: bitsat-2
In a region, the potential is represented by V(x,y,z)=6x-8xy-8y+6yz, where V is in volts and x,y,z are in metres. The electric force experienced by a charge of 2 coulomb situated at point (1,1,1) is:
1
6√(5)N
2
30N
3
24N
4
4√(35)N
04
PYQ 2011
medium
physics ID: bitsat-2
A hollow metal sphere of radius 5 cm is charged such that the potential at its surface is 10 V. The potential at a distance of 2 cm from the centre of the sphere is:
1
zero
2
10 V
3
4 V
4
(10)/(3) V
05
PYQ 2014
medium
physics ID: bitsat-2
Electric field in the region is given by . The correct expression for the potential in the region is [assume potential at infinity is zero]:
1

2

3

4
06
PYQ 2015
medium
physics ID: bitsat-2

At the three vertices of an equilateral triangle of side , three point charges are placed (each of ). If this system is supplied energy at the rate of , calculate the time required to move one of the charges to the mid-point of the line joining the other two.

1

2

3

4
07
PYQ 2017
medium
physics ID: bitsat-2
A long, hollow conducting cylinder is kept coaxially inside another long, hollow conducting cylinder of larger radius. Both the cylinders are initially electrically neutral.
1
a potential difference appears between the two cylinders when a charge density is given to the inner cylinder.
2
a potential difference appears between the two cylinders when a charge density is given to the outer cylinder.
3
no potential difference appears when a uniform line charge is kept along the axis of the cylinders.
4
no potential difference appears when same charge density is given to both the cylinders.
08
PYQ 2018
medium
physics ID: bitsat-2
Electric potential at any point is V = -5x + 3y + √(15)z. The magnitude of the electric field is:
1

2

3

4
7
09
PYQ 2019
medium
physics ID: bitsat-2
At the corners of an equilateral triangle of side a = 1m, three point charges each of 0.1C are placed. If the system is supplied energy at the rate of 1kW, calculate the time required to move one of the mid-point of the line joining the other two.
1

2

3

4
54h
10
PYQ 2021
medium
physics ID: bitsat-2
A long, hollow conducting cylinder is kept coaxially inside another hollow conducting cylinder of larger radius. Both the cylinders are initially electrically neutral.
1
a potential difference appears between the two cylinders when a charge density is given to the inner cylinder.
2
a potential difference appears between two cylinders when a charge density is given to the outer cylinder.
3
no potential difference appears between the two cylinders when a uniform line charge is kept along the axis of the cylinders.
4
no potential difference appears between the two cylinders when same charge density is given to both cylinders.

About Electrostatic Potential - BITSAT

Electrostatic Potential is a vital chapter for BITSAT aspirants. Mastering the concepts covered in this chapter is essential for securing a top rank.

By rigorously practicing the previous year questions associated with this chapter, you can identify high-yield topics, understand the examiner's perspective, and boost your confidence during the actual exam.

Frequently Asked Questions

Why focus on Electrostatic Potential PYQs?

Analyzing PYQs for this specific chapter reveals the most frequently tested concepts and the typical complexity of questions, allowing you to tailor your study plan efficiently.

How to best use this analysis?

Review the topic breakdown to see which sub-topics within Electrostatic Potential carry the most weight. Then, tackle the questions iteratively to solidify your understanding.
