Hydrocarbons

From the diagram, it is visible that both the methyl groups are canceling each other out and resulting in zero dipole moment.

Discover More From This Chapter: Hydrocarbons

The correct option is(A): IV

Electrophilic aromatic substitution, also referred to as E.A.S, is an organic chemical reaction wherein an atom becomes bonded to an existing aromatic system, replacing a hydrogen atom. Several significant and well-known electrophilic aromatic substitution reactions include:

1. Aromatic nitration
2. Aromatic halogenation
3. Aromatic sulfonation
4. Friedel-Crafts acylation
5. Friedel-Crafts alkylation

Within this set of compounds, we can observe the presence of the following functional groups attached to the aromatic system:

(A) Chlorine atom: Exhibits mild deactivating properties, diminishing nucleophilicity due to its electron-withdrawing effect on the aromatic system.

(B) Methoxy group: Acts as an activating group, enhancing nucleophilicity by donating electrons to the aromatic system.

(C) Methyl group: Also behaves as an activating group, boosting nucleophilicity by donating electrons to the aromatic system.

(D) Nitrile group: Displays strong deactivating characteristics, lowering nucleophilicity by withdrawing electrons from the aromatic system.

Therefore the correct option is (A).

Temperature is the effective factor.

When it comes to dehydration of alcohols the optimum temperature is between 220 to 250 degrees. Then it will form ether.

R-CH₂-CH₂-OH → R-CH+CH₂ +H₂O

The reaction takes place in the presence of Al2O3 at 350 to 380 degrees.

The correct option is (C) : Spatial arrangement of atoms

The isomers that differ from one another in terms of their geometry or atoms' spatial arrangement are known as geometric isomers, also known as cis-trans isomers or EZ isomers. Double bonds and ring structures are the two primary sources of geometric isomers. In contrast to limited rotation about the double bond, which emphasises the relative locations of the substituent groups above and below the double bond, the C-C single bond has unrestricted rotation.

The correct option is (B) : CH₃ – C ≡ CH

This is the process for making alkyne. In this reaction, reducing agents like alcohol KOH or sodamide are applied to the alkyl dihalide to produce alkyne as a byproduct.

The compound provided is isopentylene. Upon its reaction with NaIO₄ in the presence of potassium permanganate, it undergoes oxidation to produce acetone and acetic acid, respectively.
So, the correct option is (B): CH₃COCH₃+CH₃COOH

The correct answer is Option D) 2 and 5

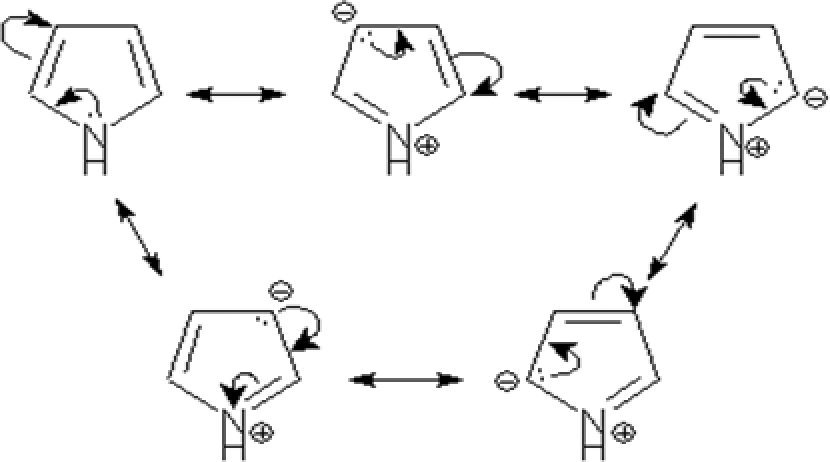

Pyrrole has the highest electron density at and due to the highest stability of protonated intermediate. The resonance structure of pyrrole depicts that the 3rd and 5th structures are stable ones.

Discover More From Chapter: Hydrocarbons

To determine which molecule has all atoms coplanar, we need to focus on the concept of hybridization. Molecules with sp² hybridized carbon atoms are typically coplanar, meaning all their atoms lie in the same plane.

Key Points:

• In sp² hybridization, carbon atoms form a trigonal planar structure, where all atoms are in the same plane.
• Examples of sp² hybridized molecules that are coplanar include:
  • Ethene (C₂H₄): The two carbon atoms are sp² hybridized, and the molecule is flat.
  • Benzene (C₆H₆): The six carbon atoms are sp² hybridized, and the molecule is planar.
  • Formaldehyde (CH₂O): The carbon atom is sp² hybridized, and the atoms lie in the same plane.

If a molecule contains sp² hybridized carbon atoms, it will generally have all its atoms in the same plane (coplanar).

Nitration of benzene involves the formation of the nitronium ion , which is the actual electrophile in the reaction. The reaction is:


The presence of excess KHSO₄ (which is acidic) increases the concentration of HSO₄⁻ in the medium, making the solution more acidic but less reactive toward nitronium ion formation. This suppresses the equilibrium that produces the active electrophile:

• More HSO₄⁻ shifts equilibrium backwards.
• This reduces the formation of NO₂⁺, the key reactive species.

Therefore, the rate of nitration will decrease.

Step 1: Analyze Option (1) - BF₃

BF₃ is a planar molecule with B-F bonds arranged symmetrically. The dipole moments of the B-F bonds cancel each other, resulting in a zero dipole moment for the molecule. Thus, option (1) is false.

Step 2: Analyze Option (2) - Dipole Moment of NF₃ vs NH₃

In NF₃, fluorine is more electronegative than nitrogen, and the dipoles do not cancel, so NF₃ has a non-zero dipole moment.

NH₃ also has a non-zero dipole moment, but NF₃ has a greater dipole moment due to the greater electronegativity of fluorine. Thus, option (2) is true.

Step 3: Analyze Options (3) and (4)

Option (3): The Carbonate Ion (CO₃²⁻)

The carbonate ion (CO₃²⁻) has three resonance structures with equal contribution, so option (3) is true.

Option (4): The Ozone Molecule (O₃)

The ozone molecule (O₃) has two major resonance structures, so option (4) is true.

Step 4: Conclusion

The correct answer is: Option (4): Three canonical forms can be drawn for the CO₃²⁻ ion.

Step 1: Understand the Reaction Sequence

Without the reaction structure being provided here, we generally assess each step by the reagents used and predict the products accordingly.

Step 2: Analyze Each Structure

The reaction likely involves substitution or addition reactions, and we would analyze each possible product structure formed based on the reactants and reaction type.

Step 3: Conclusion

Given the multiple-choice options, Structure 1 is the most likely major product.Step 1: Understand the Reaction Sequence

Without the reaction structure being provided here, we generally assess each step by the reagents used and predict the products accordingly.

Step 2: Analyze Each Structure

The reaction likely involves substitution or addition reactions, and we would analyze each possible product structure formed based on the reactants and reaction type.

Step 3: Conclusion

Given the multiple-choice options, Structure 1 is the most likely major product.
