Diodes Characteristics And Applications

1. Information from Mass Defect:

• Stability of the Nucleus: The mass defect indicates the binding energy that holds the nucleus together. A larger mass defect implies a more stable nucleus since more energy is required to separate the nucleons.
• Energy Released in Nuclear Reactions: The mass defect gives information about the energy that can be released during nuclear reactions, such as fission or fusion. The energy released is proportional to the mass defect, according to the equation .

2. Information from Binding Energy:

• Comparing Stability of Nuclei: Binding energy per nucleon helps compare the stability of different nuclei. Nuclei with higher binding energy per nucleon are more stable, while those with lower binding energy are less stable and more likely to undergo fission.
• Energy Released in Nuclear Fission or Fusion: The binding energy per nucleon determines the energy released in nuclear reactions like fission and fusion. In the fission process, when a heavy nucleus splits into lighter nuclei, the total binding energy increases, releasing energy in the process.

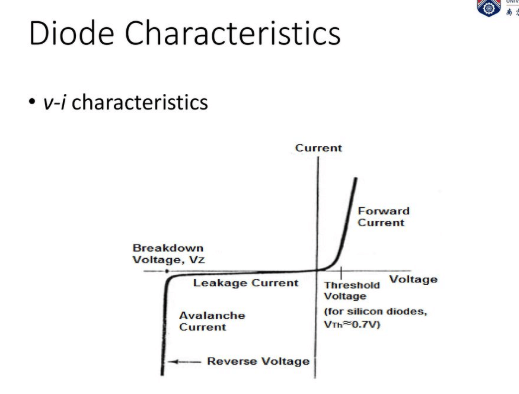

V-I Characteristics of a Diode

The V-I characteristics of a diode can be divided into two distinct regions:

1. Forward Bias Region

In the forward bias region, the p-side of the diode is connected to the positive terminal of the battery, and the n-side is connected to the negative terminal. In this region, the current increases exponentially as the voltage increases. Initially, there is very little current, but once the threshold voltage (typically around 0.7 V for silicon diodes) is reached, the current rises sharply.

2. Reverse Bias Region

In the reverse bias region, the current remains very small (almost zero) until the reverse breakdown voltage is reached. After that, the current increases drastically in the reverse direction. This reverse breakdown occurs when the voltage exceeds a critical value, causing the diode to conduct in reverse.
