Tetravalence Of Carbon Shapes Of Organic Compounds

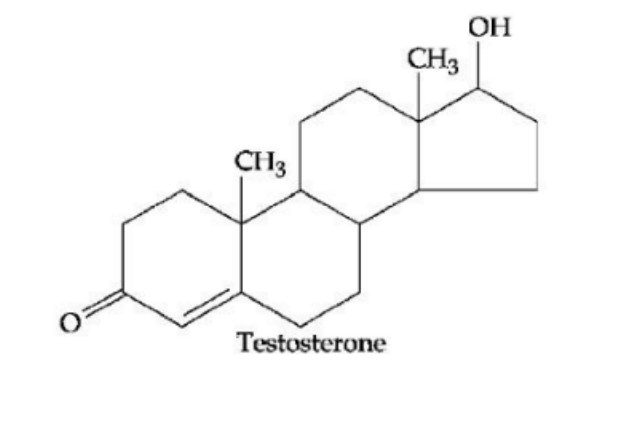

An asymmetric carbon atom (chiral center) is a carbon atom that is bonded to four different groups. Let’s examine the structure of testosterone:
Looking at the structure, we can identify the carbon atoms that have four different groups attached. These are chiral centers.
1. The carbon atom at the junction of the six-membered ring with the ketone group (C=O) and the five-membered ring.
2. The carbon atom in the five-membered ring attached to the methyl group (CH3) and the hydroxyl group (OH).
3. The carbon atom at the top of the other six-membered ring that forms a bridge.
4. The carbon atom at the bottom of the other six-membered ring that forms a bridge.
5. The carbon atom at the top of the six-membered ring with the double bond.
6. The carbon atom at the bottom of the six-membered ring with the double bond.
Therefore, there are a total of six asymmetric carbon atoms in testosterone.

Certainly! Let's go through the solution step-by-step to determine the number of stereoisomers possible for the given structure.

To determine the total number of stereoisomers for a given molecule, we need to consider the chiral centers and any geometrical isomerism (cis/trans isomerism). The general formula for calculating the number of stereoisomers is:

Here, n is the number of chiral centers in the molecule.

Let's analyze the given structure:

1. Identify Chiral Centers: Look for carbon atoms bonded to four different groups. In this molecule, we see that there are two such chiral centers, each marked with a red dot:

2. Calculate Possible Stereoisomers: Since there are two chiral centers, apply the formula:

The factor of 2 in this case accounts for the potential geometrical isomerism (cis/trans), due to double bonds if present.

3. Reason for Options: The options were given as 8, 2, 4, and 3. Based on our calculation, the correct number of stereoisomers is 8.

Thus, the correct answer is 8, taking into consideration both the number of chiral centers and any geometrical configurations.

This explanation focuses on understanding and identifying all elements contributing to stereoisomerism. The presence of chiral centers and possible geometrical configuration is crucial to the solution.
